60v Portable Lithium Battery

BATTERY PACK DESCRIPTION

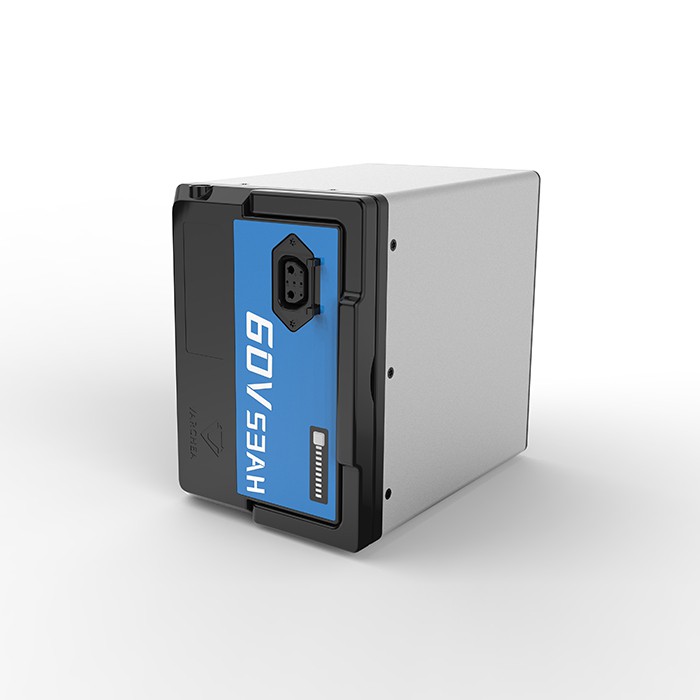

VARCHEA 60V 53Ah battery pack is a compact, safe and economical Lithium-Ion battery pack.
The battery adopts aluminium alloy shell and full sealant fixing, with beautiful appearance, stable structure, IP67 waterproof level, is suitable for various occasions of high-power electric vehicle(Bike, Scooter and Tricycle) drive traction.

BATTERY PACK TECHNICAL PARAMETERS

BATTERY PACK FEATURES
SAFE OPERATION:
- It is designed to the highest automotive standards
- The BMS intelligently monitors the entire process, managing each battery pack and providing early warning of abnormal operating conditions to deliver optimum performance.
- Protect against short circuit, cell over voltage, cell under voltage, charge over current and discharge under current
- High strength aluminium alloy case and internal full sealant fixed structure with superior impact, drop and vibration resistance
- It comes with IP67 water tight enclosure also


HIGH PERFORMANCE:
- We have used a high power pound cells.
- It support 100A continuous and 180A peak discharge current
- It support 70A continuous charge current
- This battery pack has extremely low power dissipation
- Up to 50mA passive cell balancing
- It supports CANBUS protocol framework


CONVENIENT TO USE:
- This battery pack is direct replacement to lead acid battery pack
- VARCHE Standards Plug in Plug Out power socket
- It has very short charging time
-It is portable and compact for easy fitment

FEATURES OF BMS

Our A Class BMS provides passive balancing of up to 50 mA. Cell balancing is achieved by discharging energy from the highest charged cells, resulting in increased pack lifetime with a higher capacity and longer runtime than unbalanced battery packs.



Our A Class BMS protect battery pack from over charging. It detect the voltage and cut the charging at 71.4V±0.40V. This is a very essential safety parameter as it make battery pack safe from overheating



Our A Class BMS protect battery pack from over discharging when running on load. It detect the voltage and cut the discharging at 47.60V. This is a very essential safety parameter as it make battery pack safe from deep discharge.



BMS protect battery from short circuit condition. If any exterior short circuit is happening it detect the condition and disconnect the load from battery pack.



BMS protect battery pack from over current in case heavy load is applied on pack other than specified. It detects the current at 180A10s and cut the load from battery bank.



SAFETY AND PRECAUTION
When charging the battery, use dedicated chargers and follow the specified condition
Do not connect battery directly to an electric outlet or high current application.
Do not heat or throw battery into a fire.
Do not use, leave battery close to fire or inside of a car where temperature may be above 60°C. Also do not charge / discharge in such conditions.
Do not immerse, throw, and wet battery in water/ seawater.
Do not short circuit the (+) and (-) terminals with other metals.
Do not place battery in a device with the (+) and (-) in the wrong way around.
Do not pierce battery with a sharp object such as a needle.
Do not hit with a hammer, step on or throw or drop to cause strong shock.
Do not disassemble or modify the battery.
Do not use a battery with serious scar or deformation
